Packaging & Delivery



Packaging Details: packed in carton with plastic woven bag inside, also can be package as client's requirement

Delivery Detail: 7-10 days after recieve the advance payment

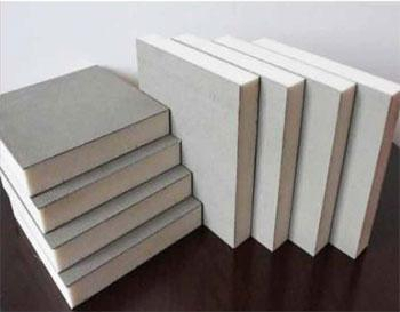

Phenolic Foam Insulation Material





Product Description















Item



Phenolic Board For air condition





Material



modified phenolic foam





Specification





1.     Thickness: 20mm – 100mm





2.     Width:600mm–1200mm





3.     Length:1000mm–6000mm





4.     Compressive Strength:vertical direction 110kPa(35kg/m³ ),horizontal direction 175kPa (35kg/m³ ),





5.     Flame Retardant:B1











Technical Data





Density



60-75kg/m³





Thermal conductivity



0.023-0.034W(m.k)





Compression strength



0.2-0.45Mpa





Bending strength



1.2-1.44Mpa





Dimensional Stability



≤1.5%





Water absorption



≤3%(v/v)





[SDR]Smokedensity rating



≤1





Working temperature



-50°C-125°C





Flame rating



GB8624-1997:Grade A



GB8624-2006:Grade B-s1,d0,t1





Formaldehyde emission



≤1.5ml/L





Maximum allowable wind speed



15M/S





Working pressure



≤1500Pa





Leakage volume,pressure and deformation



Qualified















Acid and alkali resistance



Soak at roomtemperature,no change





















10 advantage of phenolic plastic insulation board



1.The brand GUIBAO is trustworthy

2.Professional research and development team focus on developing new products

3.Fireproofing level B1,safe and reliable

4.Less smoke,non-toxic,energy saving and environment protection

5.Large temperature resistance scale,good stability

6.Low coefficient heat conductivity,strong thermal insulation property

7.Widely applied,effectively matched

8.Strong sound absorption

9.Simple and easy for construction,saving the construction time

10.Quality after-sale services make consumers free of worry
